SVWS – Truth by Weight | Product Brochure

Analytical & Precision Balances

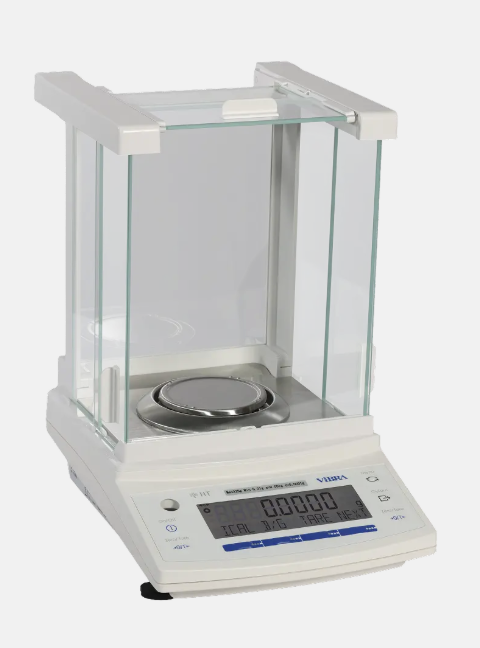

Analytical Balance — HT-R Series

Capacity	220 gm
Readability [d]	0.1 mg
Min. Weight (USP)	160 mg
Pan Size	ø 80 mm

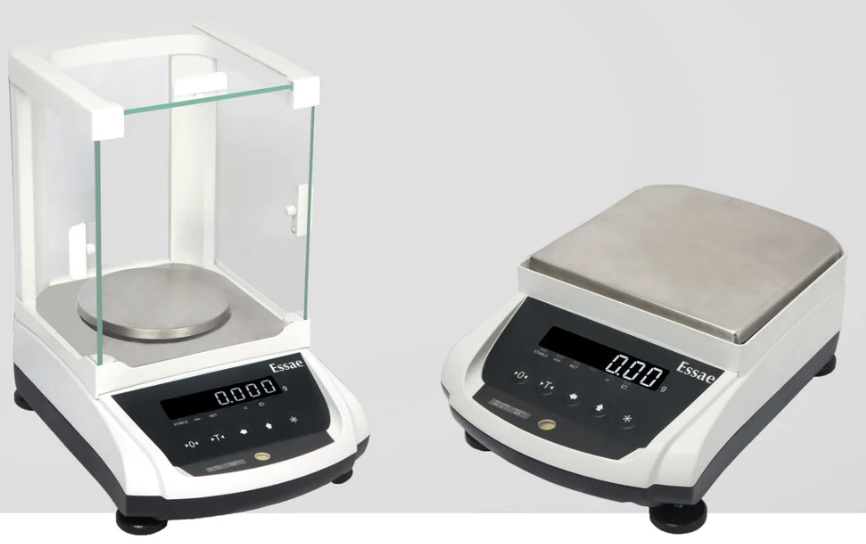

Precision Balance — AX Series

Capacity	220 \| 320 \| 620 \| 3200 gm
Readability [d]	1 \| 10 mg
Min. Weight (USP)	1 \| 10 gm
Pan Size	ø 91 \| 160×160 mm

Weighing Systems

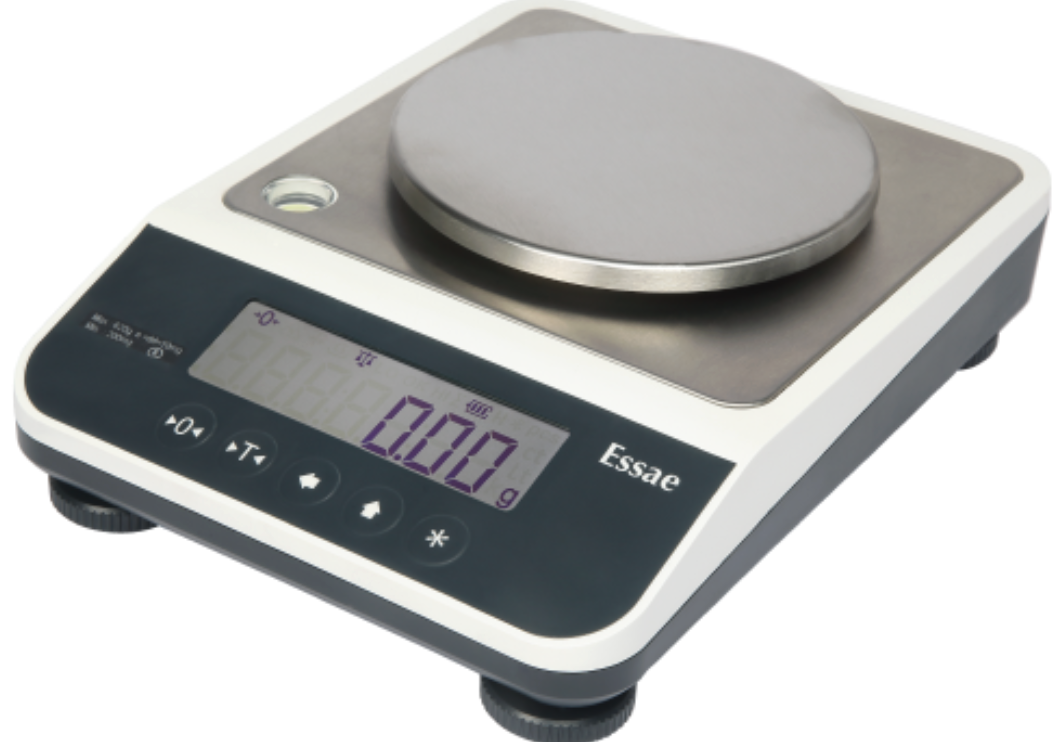

Precision Balance — JX Series

Capacity	320 \| 620 \| 1000 gm
Readability [d]	10 mg
Min. Weight (USP)	10 gm
Pan Size	ø 126 mm

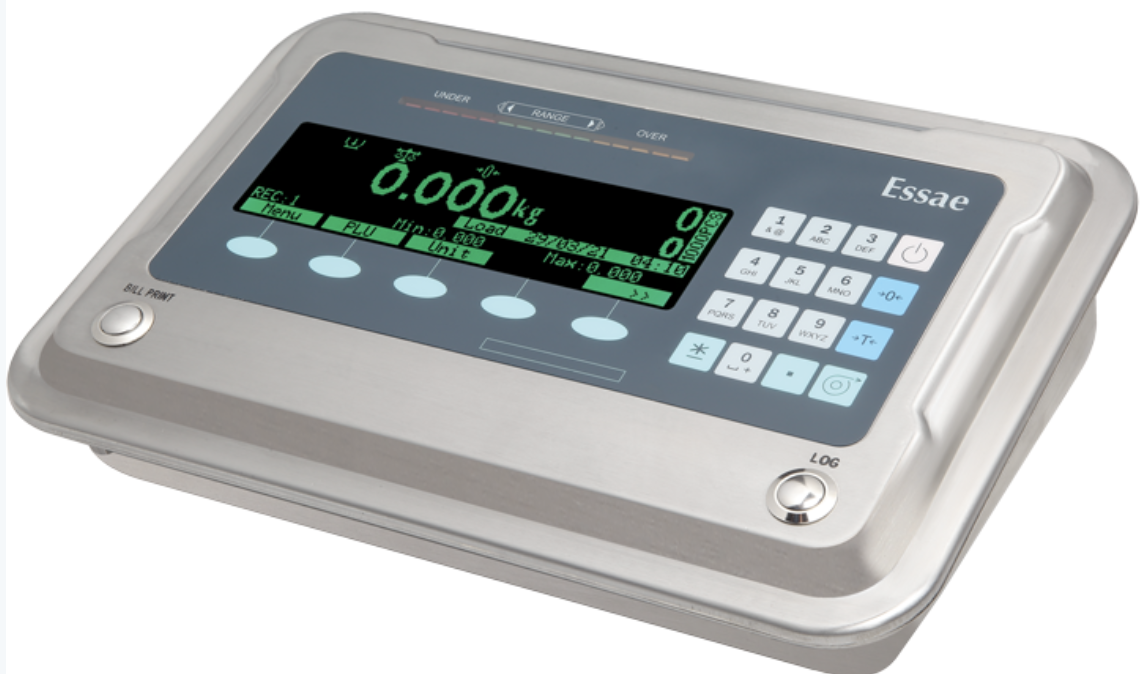

Weighing System Indicator — SI-850

Capacity	3 – 2000 kg
Accuracy	0.2 – 500 gm

Customize Printing for Label & Receipt · Check Weighing · Shipper Weighing System

Industrial Scales

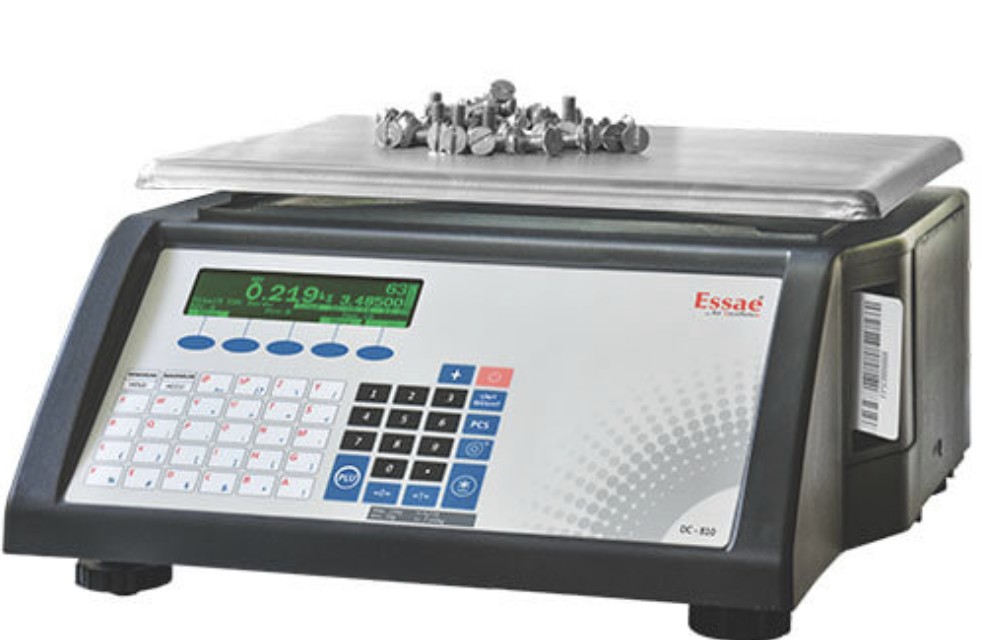

Piece Counting & Labelling Scale — DC-810/815

Capacity	6 – 5000 kg
Accuracy	0.5 – 500 gm

PLU Upload / Download · Flexible Barcode Programming to Customize Label Design

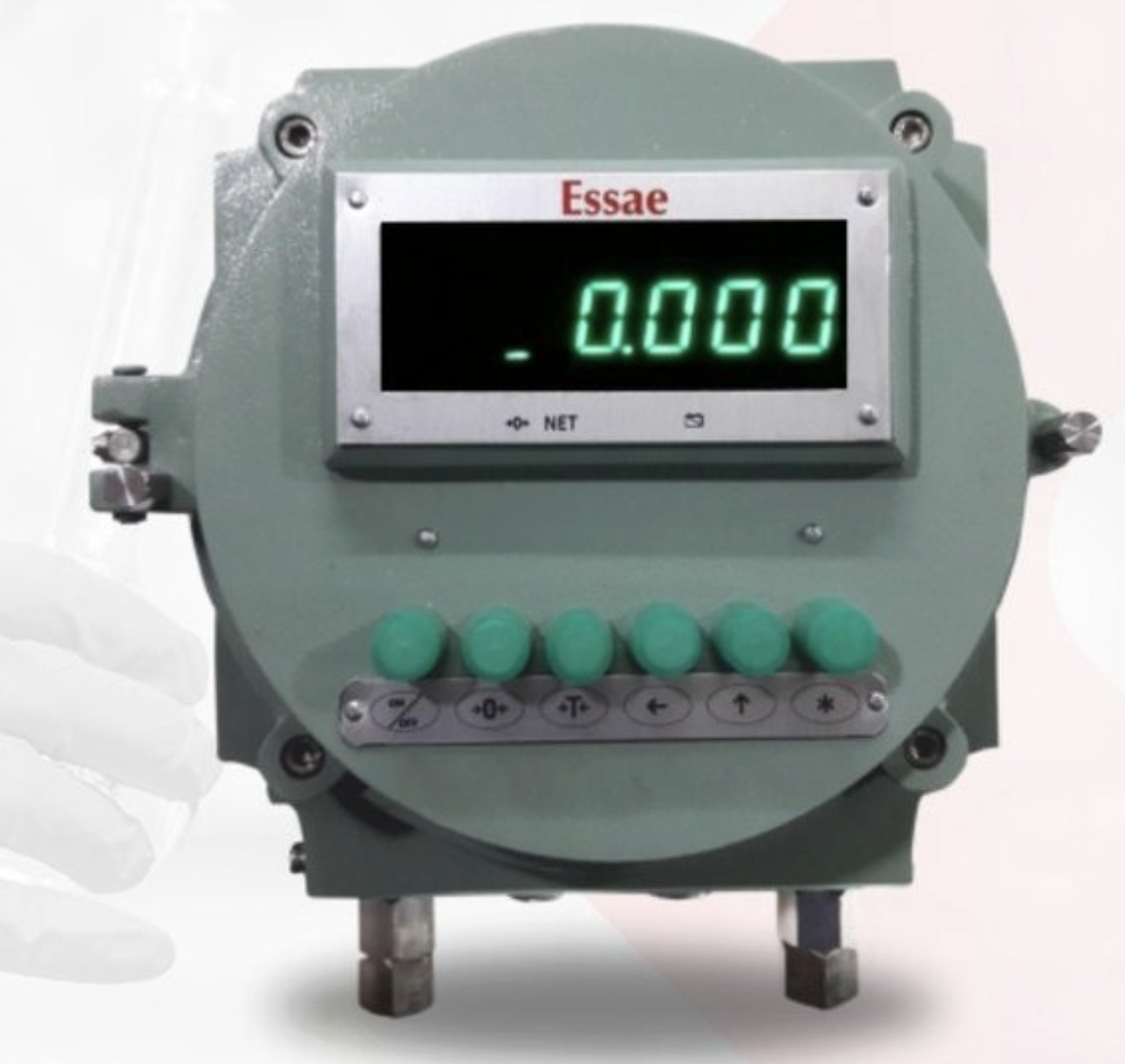

Flame Proof / Roller Scale — DF-451

Capacity	6 – 1500 kg
Accuracy	0.5 – 200 gm

IP-65 Flame Proof Console for Hazardous Area

Commercial & Platform Scales

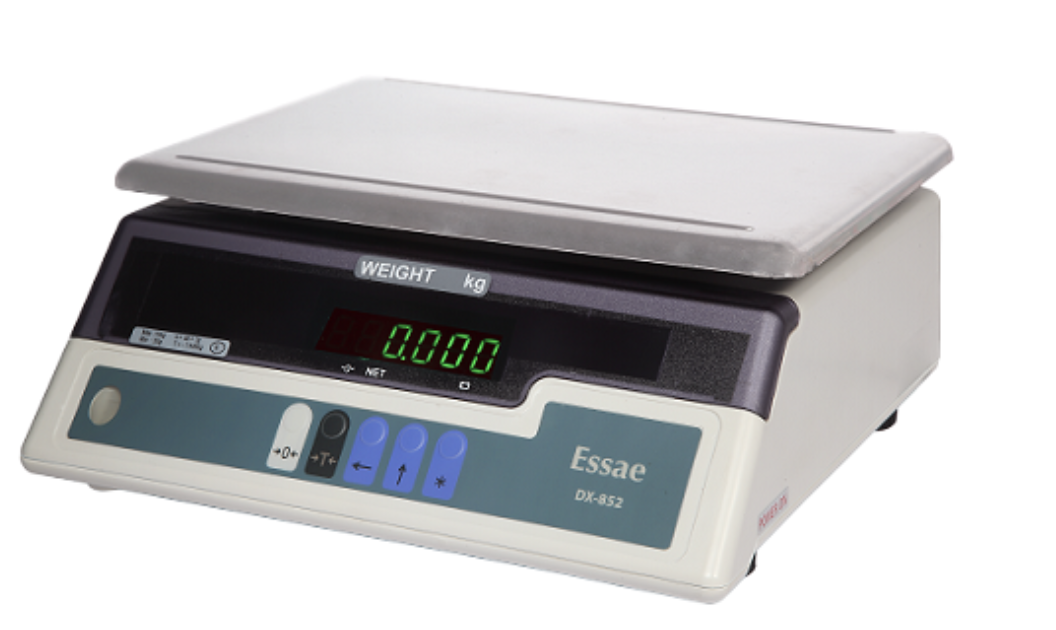

Table Top Scale — DX-852

Capacity	1 – 40 kg
Accuracy	0.1 – 2 gm

Bright Green LED Display

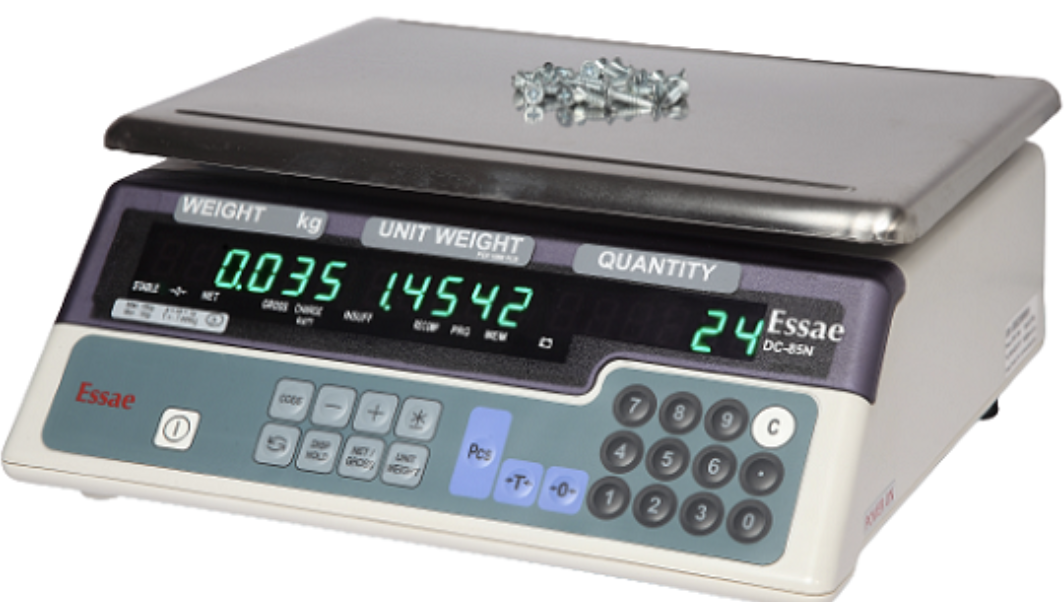

Piece Counting Scale — DC-85N / 851N

Capacity	0.3 – 5000 kg
Accuracy	0.02 – 500 gm

3 Window Display for Weight, Unit Weight & Quantity

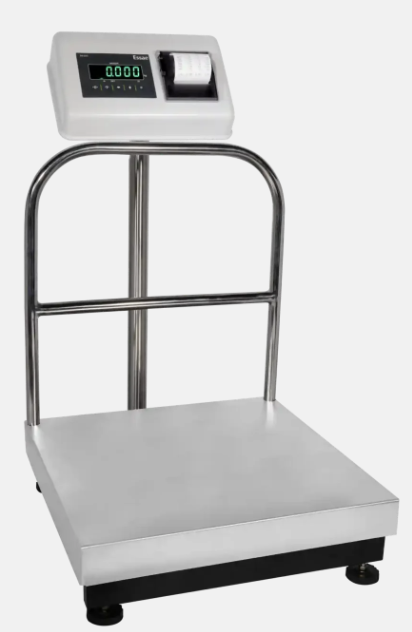

Platform Scale — DS-215HD

Capacity	30 – 2000 kg
Accuracy	2 – 500 gm

Inbuilt Thermal Printer

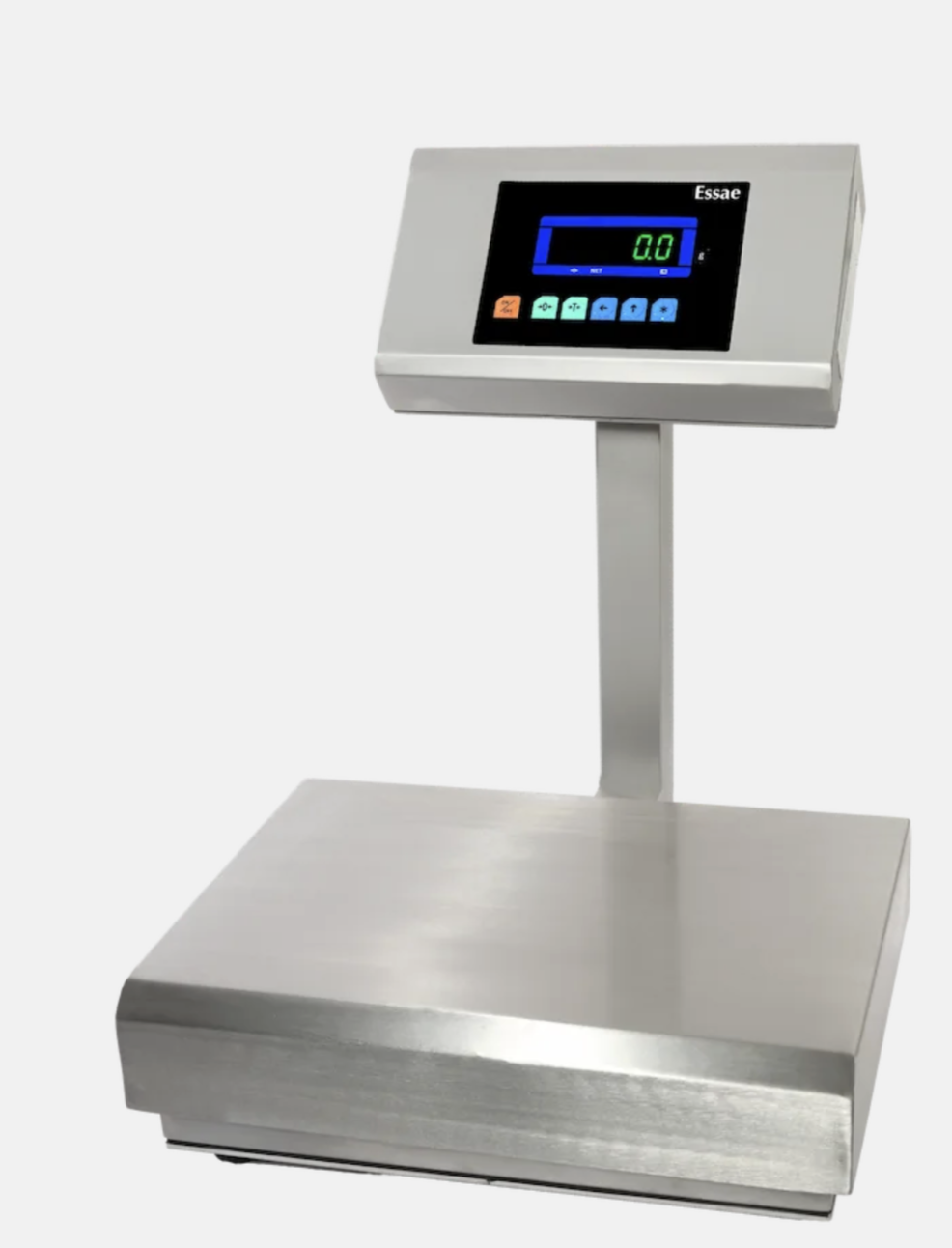

Fully SS Platform Scale — DX-451HP

Capacity	6 – 1500 kg
Accuracy	0.5 – 200 gm

Fully Stainless Steel with SS-304

Specialty Instruments

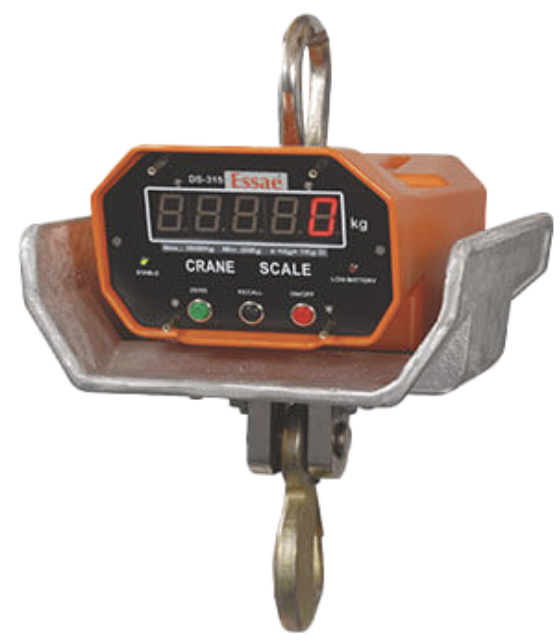

Crane Scale — DS-315

Capacity	1 – 30 Ton
Accuracy	0.5 – 10 kg

With Remote Control

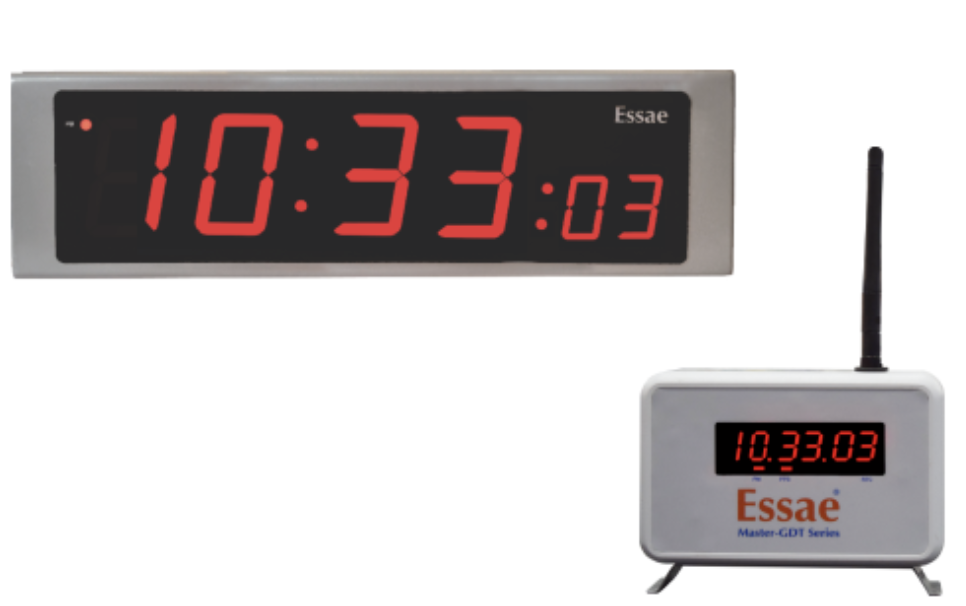

GPS Clock — GDT Series

Digit Size	57 \| 100 mm
Material	ABS \| SS304 \| Flameproof
Format	HH : MM : SS with RTC

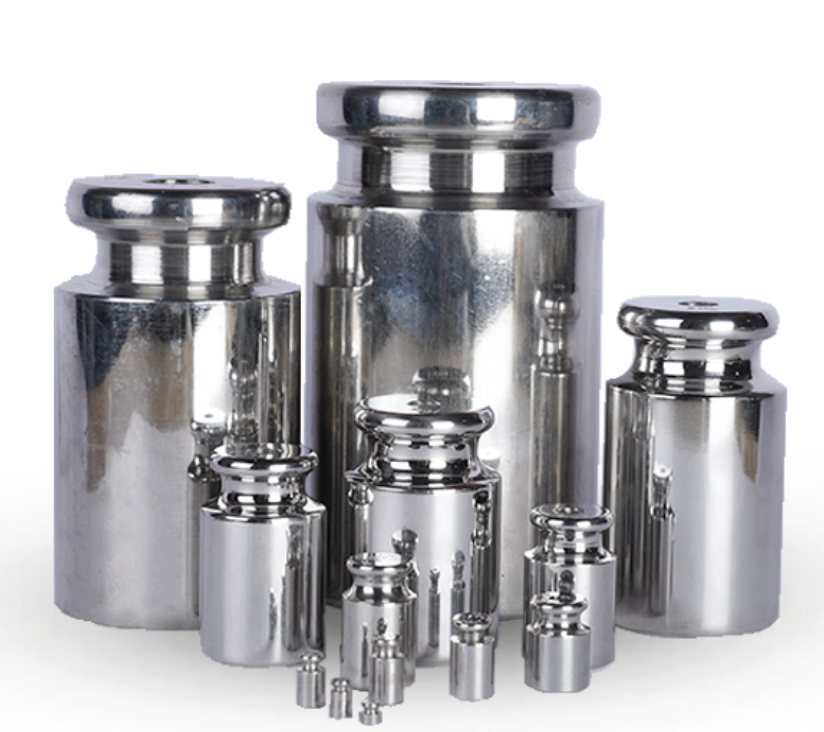

OIML Standard Weights Boxes

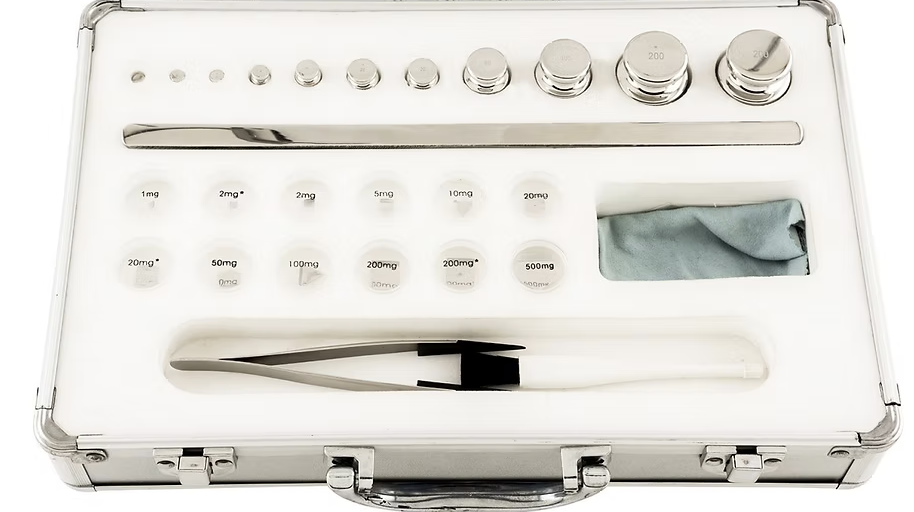

OIML Standard Weights Box

Class E1 – E2

Class	E1 / E2 (1mg – 200gm)
Standard	OIML R111
Material	Austenitic SS / 316 Stainless Steel
Construction	Solid single piece fabrication
Cavity	No Cavity adjustment
Density	8.00 g/cm³ / 7.96 g/cm³
Magnetic Susceptibility	< 0.005
Intensity of Polarization	< 2.5 μT / < 8
Shape	Cylindrical with knob / Cylindrical
Finish	Mirror Polish / Mirror
Packing Sets Weight	Aluminium alloy box
Packing Indiv. (kg)	ABS Box (20kg, 10kg, 5kg, 2kg, 1kg)
Packing Indiv. (g & mg)	ABS Box (500g to 1g & 500mg to 1mg)

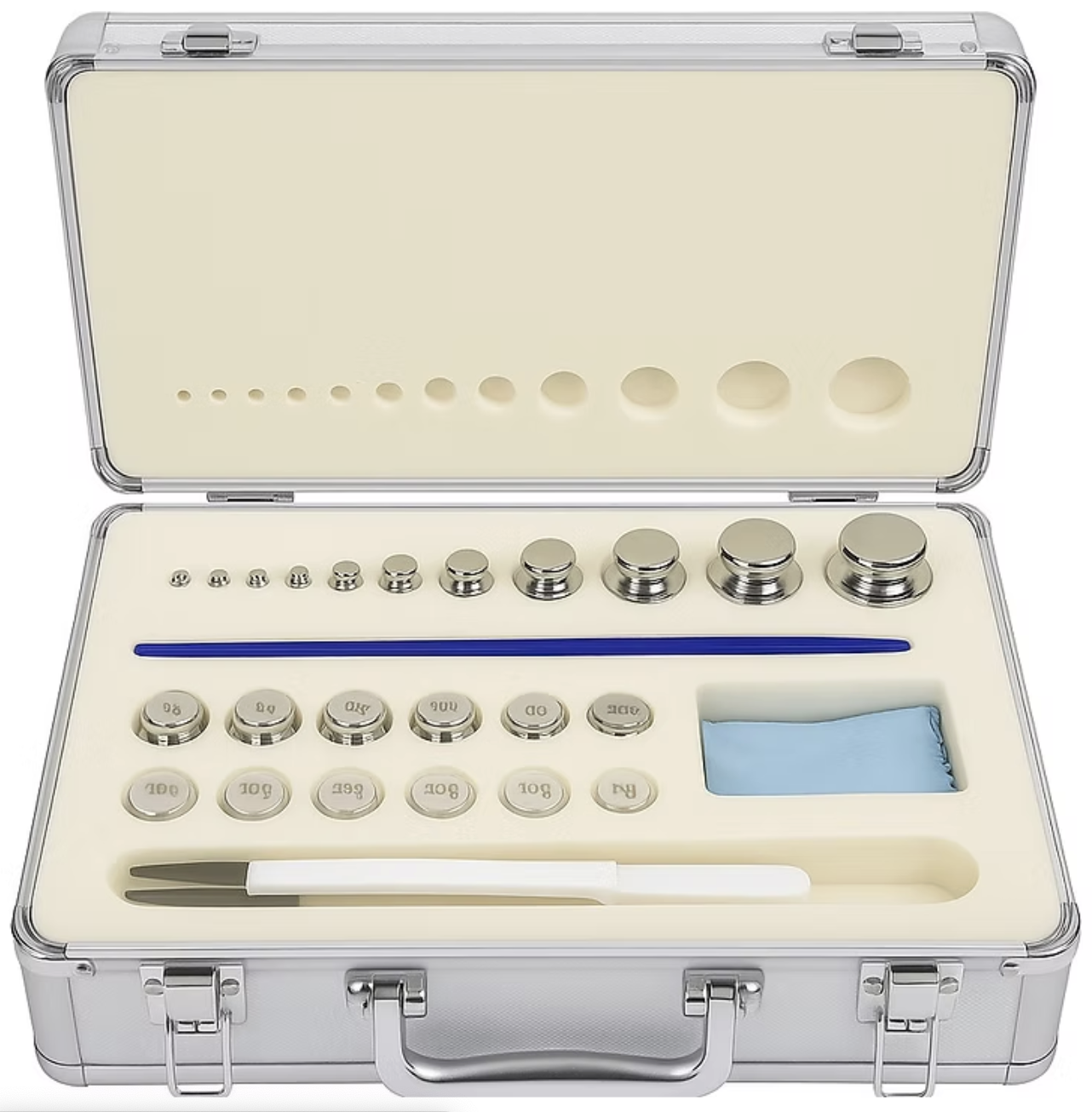

OIML Standard Weights Box

Class F1 – F2

Class	F1 / F2 (1mg – 200gm)
Standard	OIML R111
Material	304 Stainless Steel
Construction	One or two pieces of same material
Cavity	May contain adjusting cavity
Density	7.90 g/cm³ / 7.85 g/cm³
Magnetic Susceptibility	< 0.05
Intensity of Polarization	< 25 / < 35
Shape	Cylindrical with knob
Finish	Mirror Polish
Packing Sets Weight	Aluminium alloy box
Packing Indiv. (kg)	ABS Box (20kg, 10kg, 5kg, 2kg, 1kg)
Packing Indiv. (g & mg)	ABS Box (500g to 1g & 500mg to 1mg)

Available in complete sets and individual pieces · All grades and materials

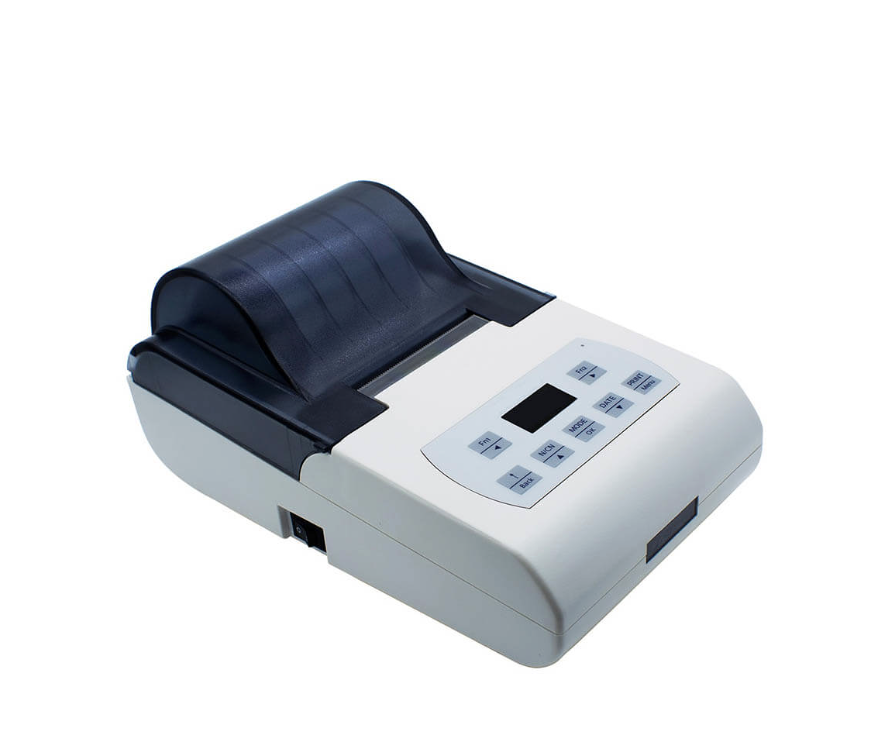

Specifications

Printing Method	Impact Dot-matrix Print
Inking	Ink Ribbon (EPSON ERC-22 / ERC-09)
Printing Format	24 Digits / Line (5×7 dot matrix)
Character Size	1.7mm (W) × 2.6mm (H) ASCII
Paper Width	57.5mm, 50mm diameter roll
Durability	1.5 Million Lines
Input Voltage	DC 12V (1.5A)
Interface	RS-232C / USB

Key Features

High-speed dot printing — suitable for long-term record preservation
ISO/GLP-compliant data printout with 128×64 OLED display
Direct, Multi Weighing, Statistical, T.G.N, Multi T.G.N, Sum, Mean, Formulation & Loss Weight modes
Editable title and tail on all printouts
Product name and batch number input & print
Data export to U-Disk in Excel or TXT format
Periodic printing support
Barcode Scanner Support
User Login and Password Protection

Printing Samples

AND
Model:      NR120
S/N:   D23452456
ID:         61100
Date:    2014-03-28
Start Time: 17:30:22
Sample No. 00000000543

001 17:30:22  10.003 mg
002 17:30:25  10.004 mg
003 17:30:26  10.005 mg

End Time:   17:30:28

Signature: ___________

Shimadzu Corporation
Model:      AUW120D
S/N:   D6842397070
ID:          61100
Date:    2013-10-01
Time:       16:37:09
Sample No. 00000000247

Tare:      10.001 mg
Gross:     10.002 mg
Net:        0.001 mg

End Time:   16:37:10

Signature: ___________

-------<STAT>--------
No.001     10.006 mg
No.002     10.007 mg
No.003     10.008 mg
------<RESULT>-------
N=              3
T=      30.021 mg
MAX=    10.008 mg
MIN=    10.006 mg
RNG=     0.002 mg
MEAN=   10.0070 mg
SD=    0.001000 mg
CV= 0.009993 %

End Time:   16:40:46

Signature: ___________
