The SVWS Catalogue

Every system your factory floor runs on — under one roof

Analytical balances, industrial & platform scales, barcode and label printers, NABL-certified calibration weights — plus the industrial software, IoT connectivity and government stamping support that turn them into one connected system.

Explore the Catalogue ↓ Talk to an Engineer →

Catalogue

Hardware built to plug straight into your workflow

Every instrument below talks to the same SVWS software layer — filter by category to find the right scale, printer or certified weight, complete with full specs.

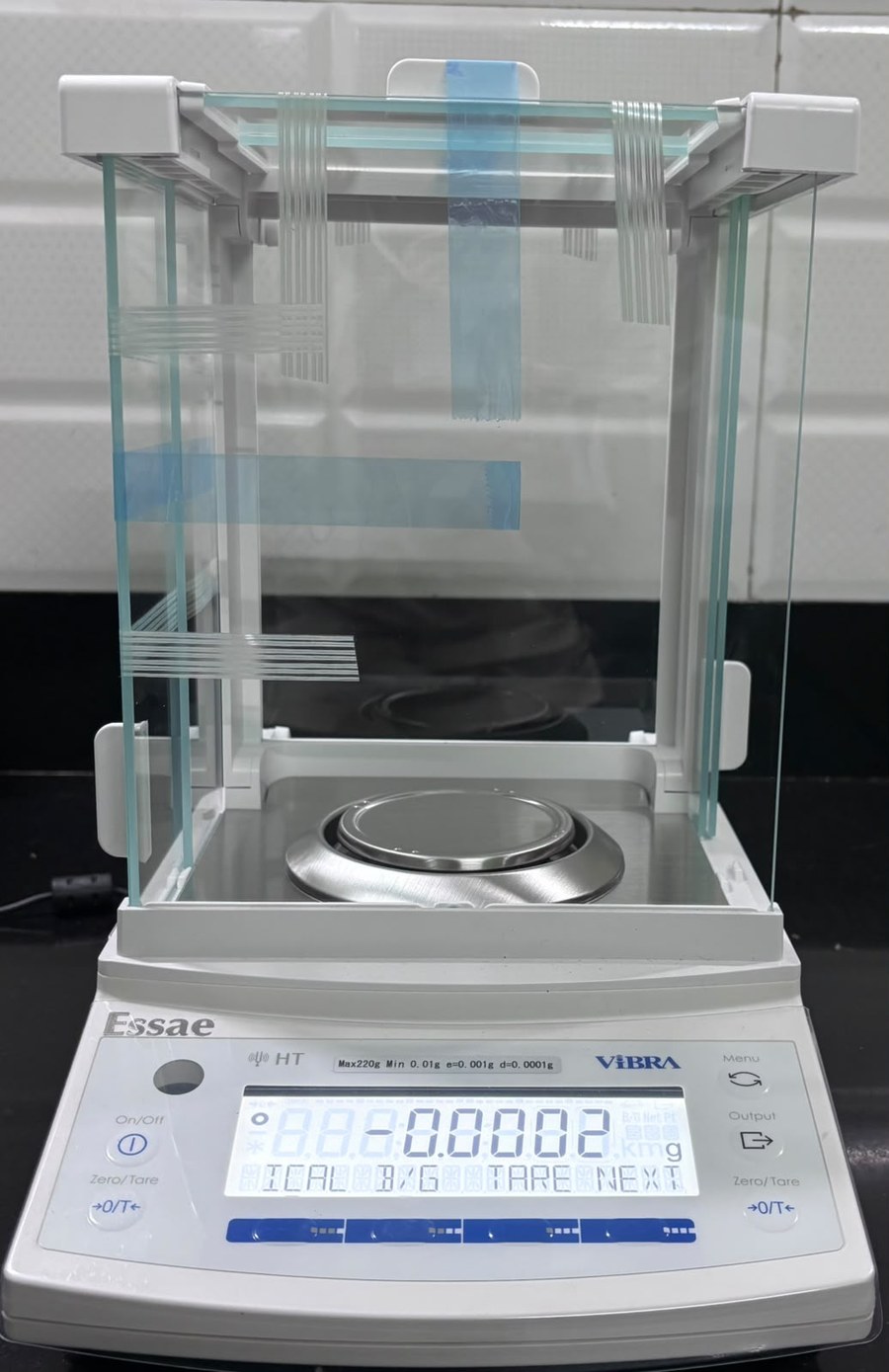

HT-224R analytical balance with draft shield

Analytical & Precision Balances

Analytical Balance — HT-224R

Capacity220 gm

Readability [d]0.1 mg

Min. Weight (USP)160 mg

Pan Sizeø 80 mm

Analytical & Precision Balances

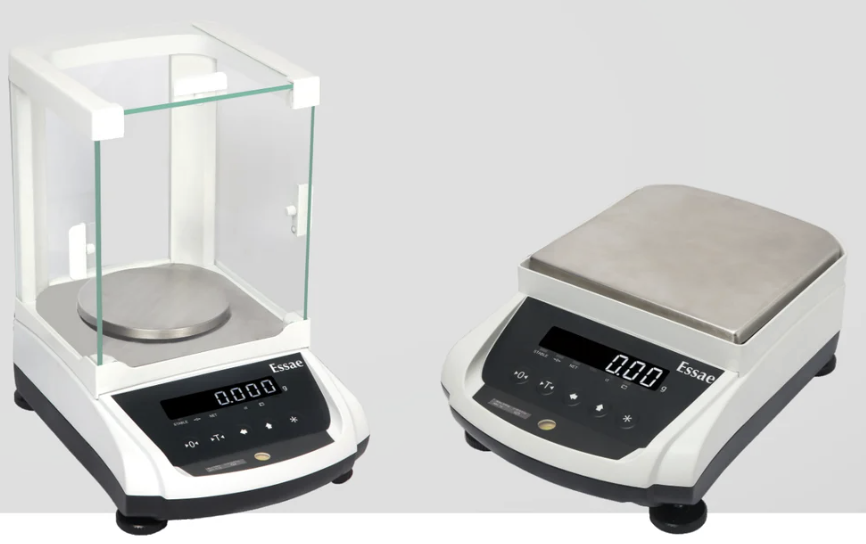

Precision Balance — AX Series

Capacity220–3200 gm

Readability [d]1 | 10 mg

Min. Weight (USP)1 | 10 gm

Pan Sizeø91 | 160×160mm

Analytical & Precision Balances

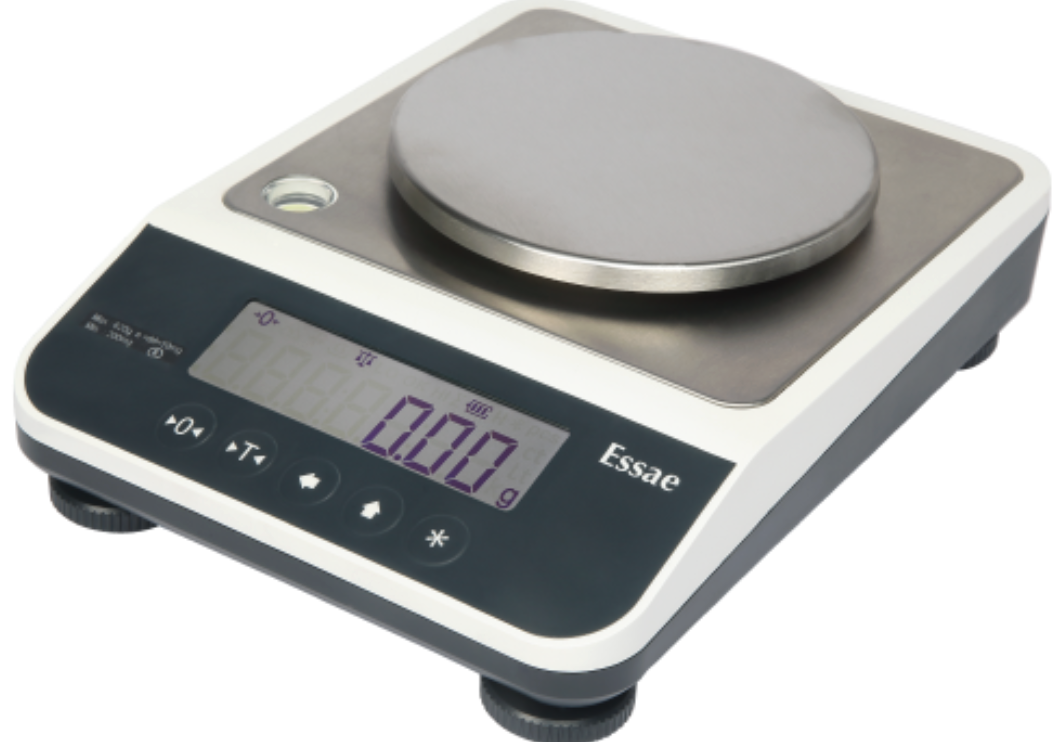

Precision Balance — JX Series

Capacity320–1000 gm

Readability [d]10 mg

Min. Weight (USP)10 gm

Pan Sizeø 126 mm

Analytical & Precision Balances

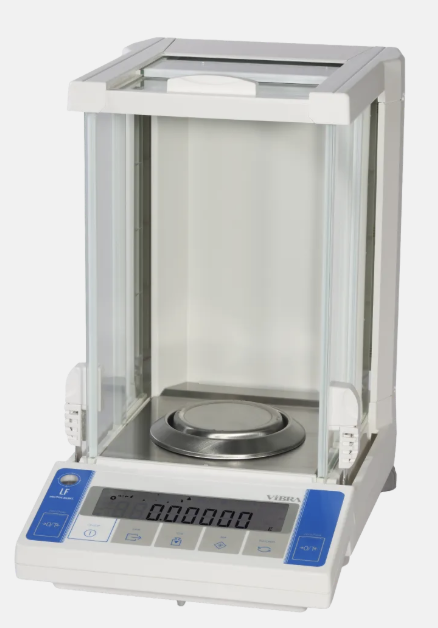

Semi Micro Balance — LF-225DR

Capacity92 g / 220 g

Readability [d]0.01 mg / 0.1 mg

Pan Sizeø 80 mm

SensorElectro-magnetic Force Compensation

Back-lit LCD · Automatic internal & external calibration · α-check stability.

Analytical & Precision Balances

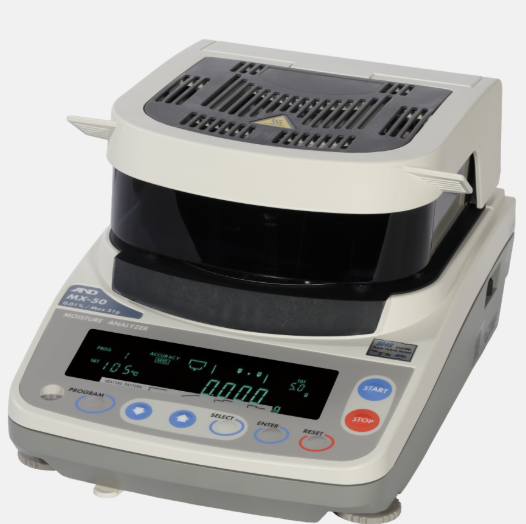

Moisture Analyser — MX-50

Max Sample Weight51 g

Weight Resolution0.001 g

Heating400W Halogen Lamp

Drying Temp.50–200°C

5 measurement modes · GLP/GMP/ISO compliant · RS-232C output.

Weighing Systems

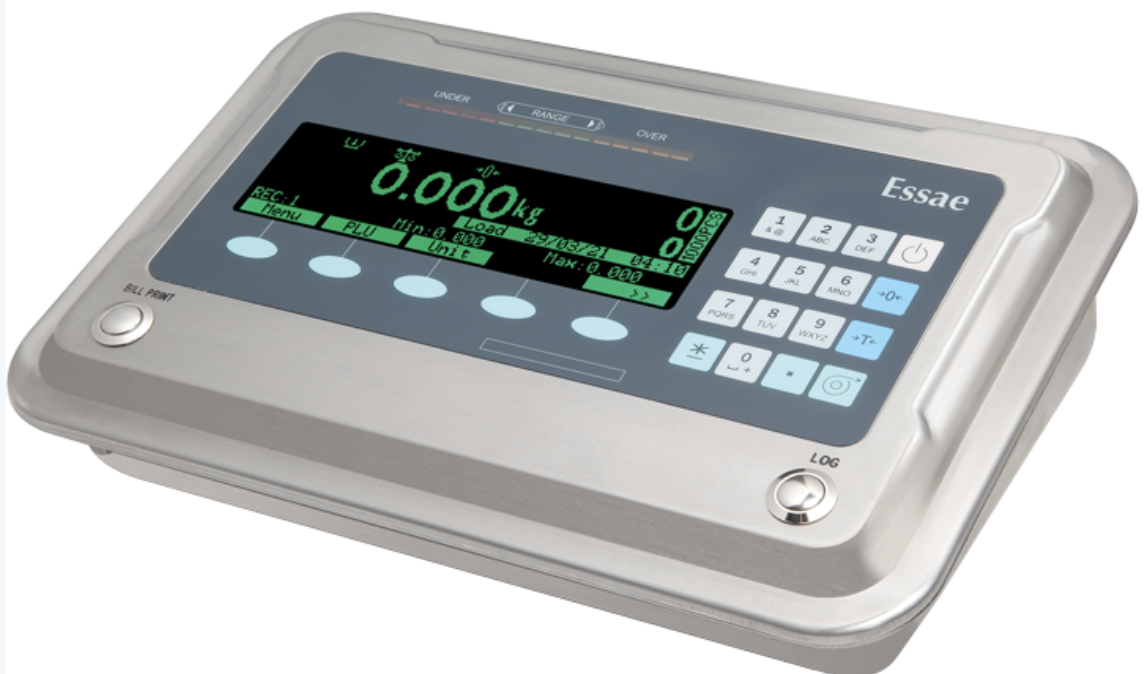

Weighing System Indicator — SI-850

Capacity3–2000 kg

Accuracy0.2–500 gm

Custom label & receipt printing · Check weighing · Shipper weighing system.

Weighing Systems

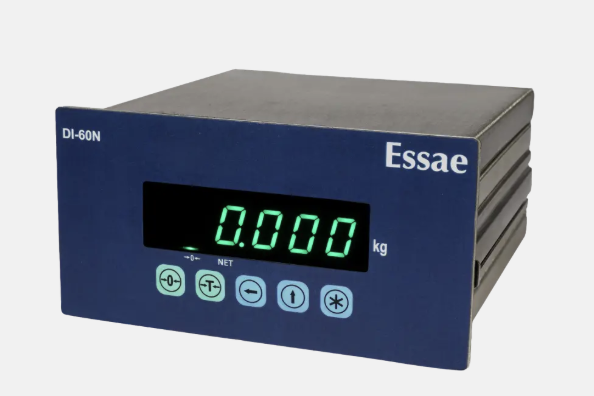

Weighing Indicator — DI-60N

Display7-Segment, 14mm Green

Resolution1/10000

ADC24-bit delta-sigma

InterfaceRS-232/RS-485 · Modbus RTU/TCP

Panel mount, SS-304 console · 4-20mA analog output for PLC/SCADA integration.

Industrial Scales

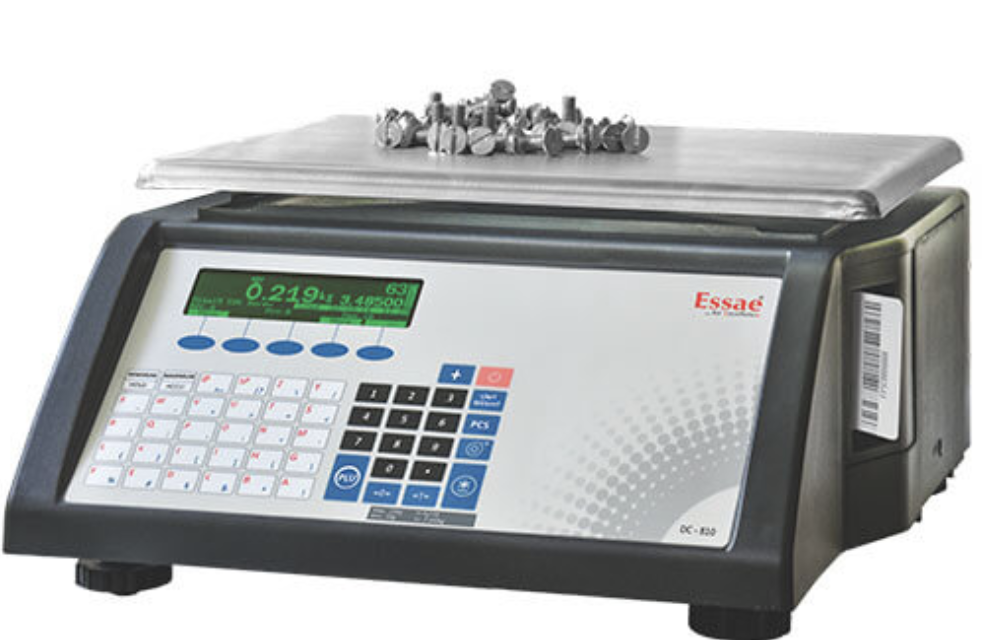

Piece Counting & Labelling Scale — DC-810/815

Capacity6–5000 kg

Accuracy0.5–500 gm

PLU upload/download · Flexible barcode label design.

Industrial Scales

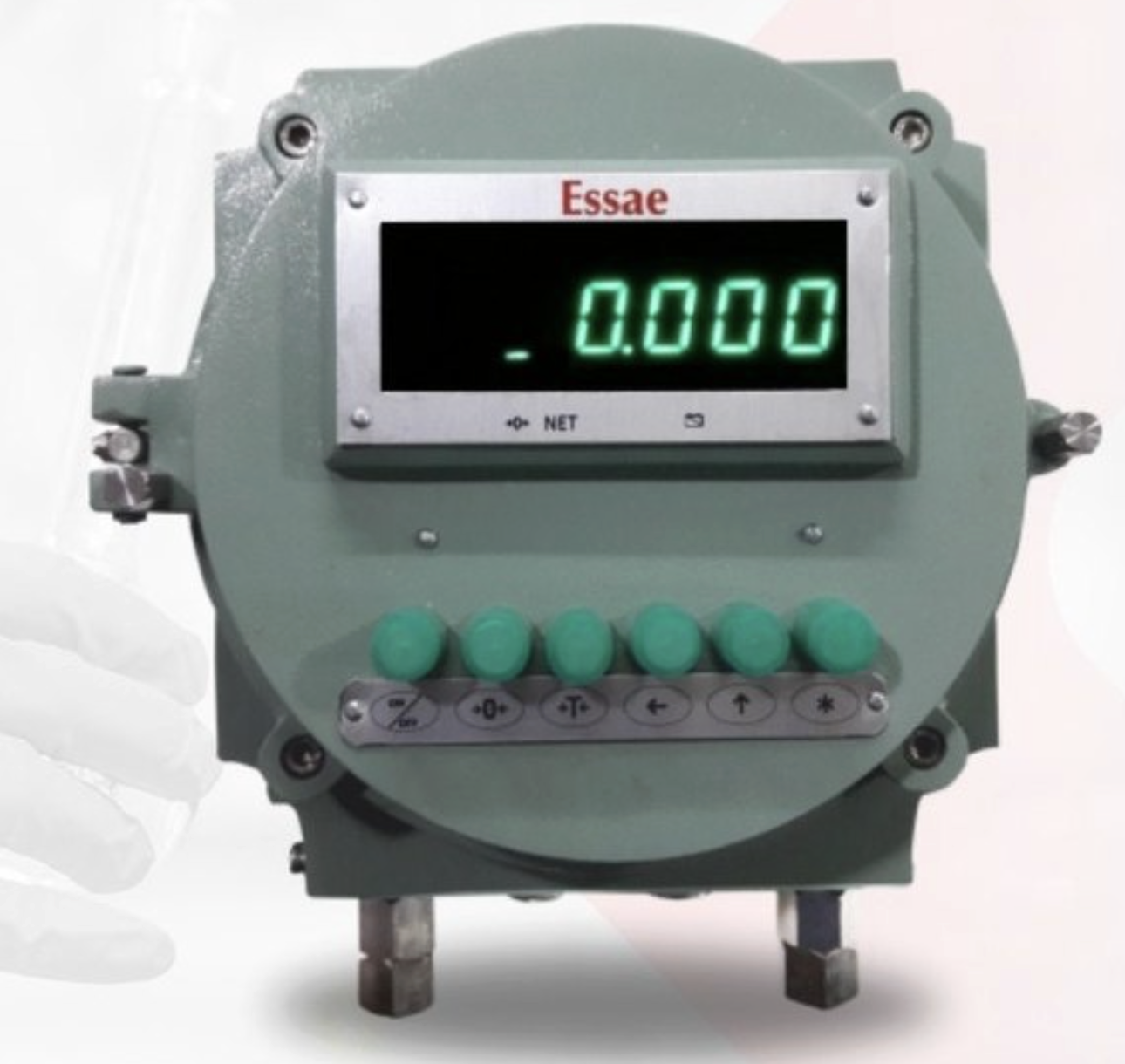

Flame Proof / Roller Scale — DF-451

Capacity6–1500 kg

Accuracy0.5–200 gm

IP-65 flame-proof console for hazardous areas.

Commercial & Platform Scales

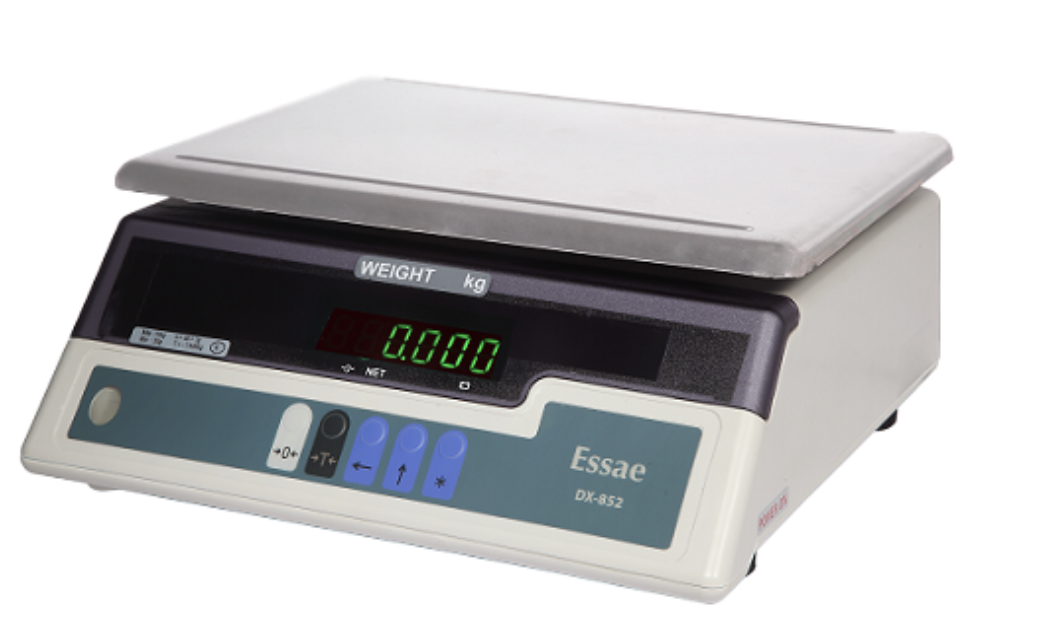

Table Top Scale — DX-852

Capacity1–40 kg

Accuracy0.1–2 gm

Bright green LED display.

Commercial & Platform Scales

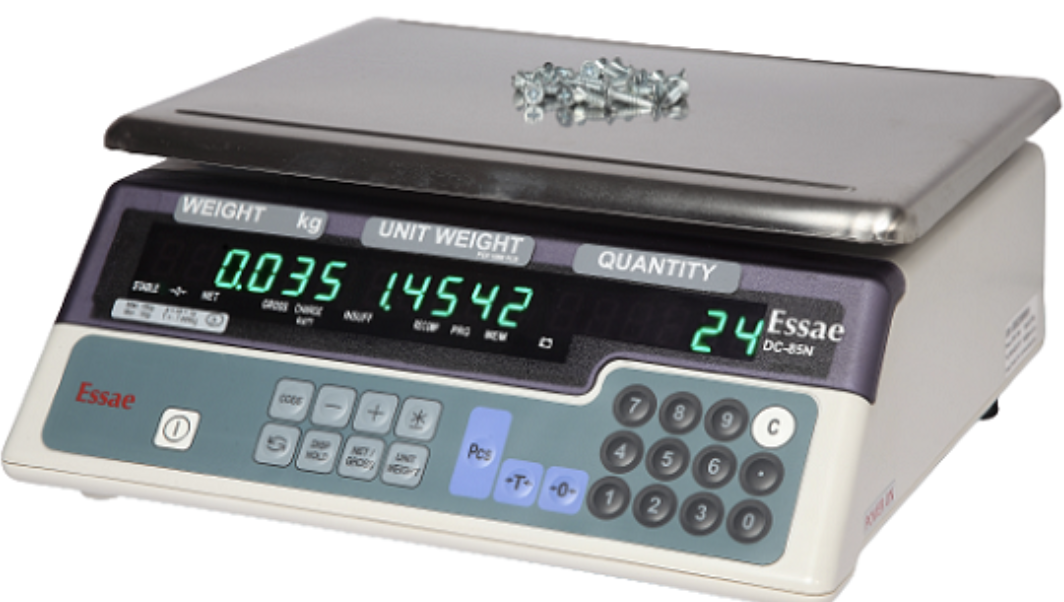

Piece Counting Scale — DC-85N / 851N

Capacity0.3–5000 kg

Accuracy0.02–500 gm

3-window display: weight, unit weight & quantity.

Commercial & Platform Scales

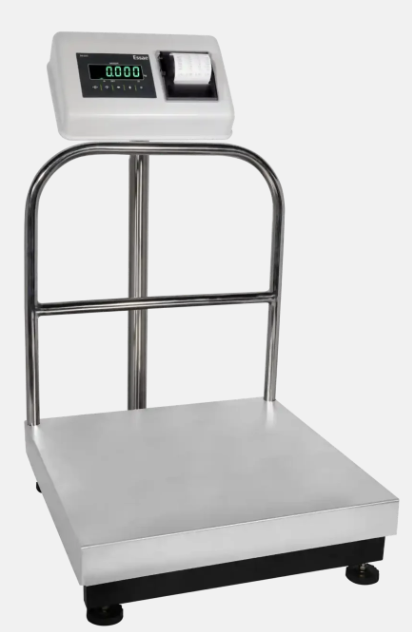

Platform Scale — DS-215HD

Capacity30–2000 kg

Accuracy2–500 gm

Inbuilt thermal printer.

Commercial & Platform Scales

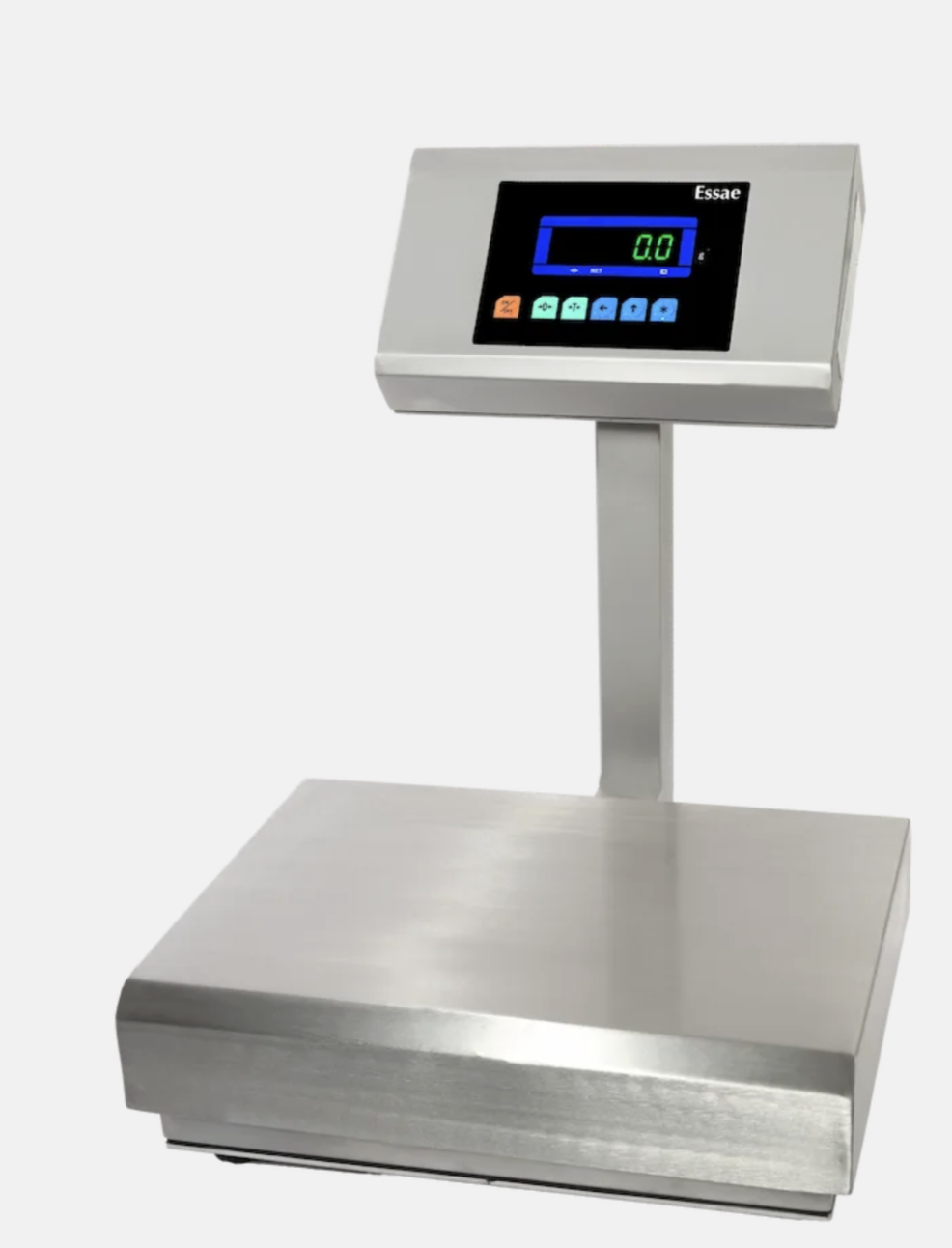

Fully SS Platform Scale — DX-451HP

Capacity6–1500 kg

Accuracy0.5–200 gm

Fully stainless steel construction, SS-304.

Crane Scale

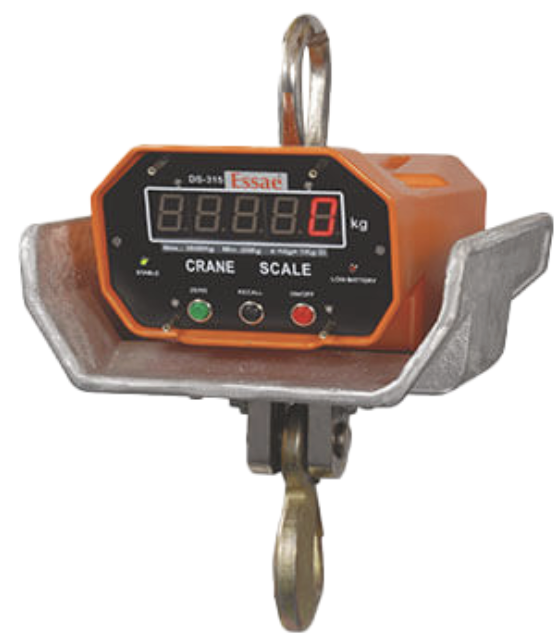

Digital Crane Scale — DS-315

Capacity1–20 Ton

Display30mm LED, 5 Digit

Battery Backup40 Hours

Supplied with remote control · optional wireless remote display.

Crane Scale

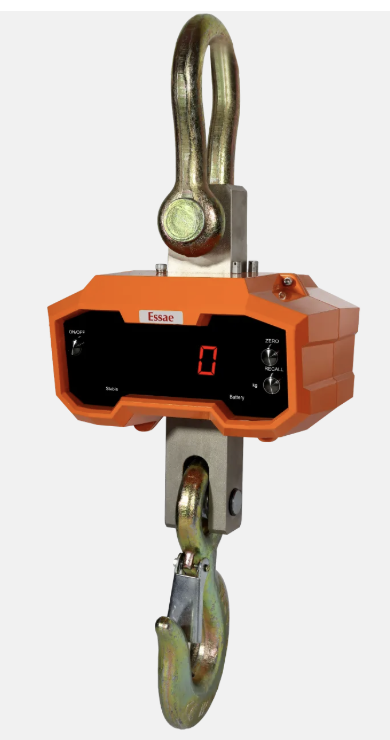

Crane Scale — DS-350

Capacity1T / 3T / 5T

Display30mm 7-Segment LED, 5 Digit

Battery7.4V Lithium-ion · up to 40 Hrs

Integrates with SI-850 & DC-810/815 · optional 2.3" wireless remote display up to 50m.

GPS Clock

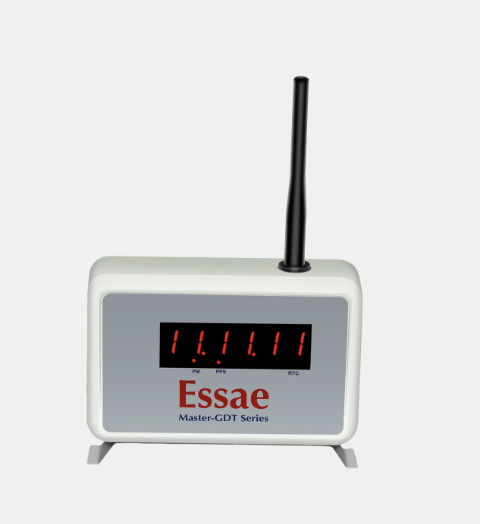

GPS Master Clock — GDT Master

DisplayInbuilt LED 7-Segment

RF Coverage400 m Line of Sight

EnclosureHIPS Plastic

Synchronises multiple slave clocks across a facility from one GPS reference.

GPS Clock

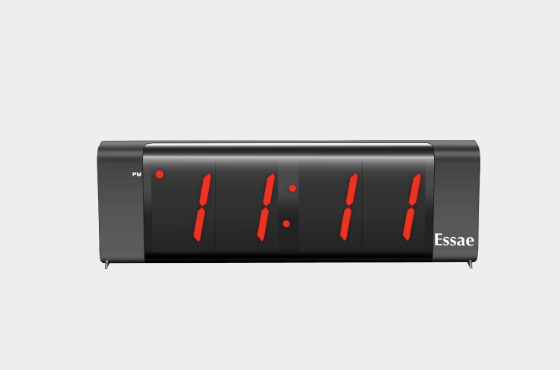

GPS Clock — GDT-57

Display Size57 mm, HH:MM

EnclosureHIPS Plastic

MountingWall Mount

Compact wall/table-top clock · 866.5 MHz RF receiver.

GPS Clock

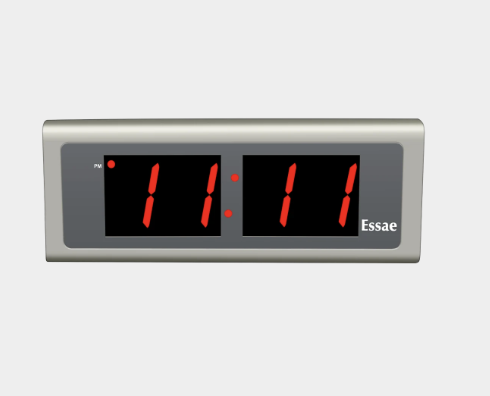

GPS Clock — GDT-57SS

Display Size57 mm, HH:MM

EnclosureSS-304 Stainless Steel

MountingWall Mount

Corrosion-resistant SS-304 body for washdown & food/pharma areas.

GPS Clock

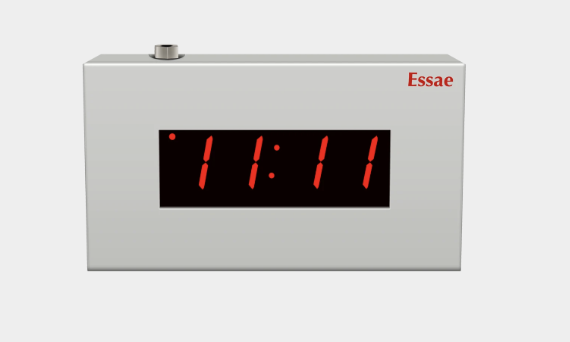

Flame Proof GPS Clock — GDT-57FLP

Display Size57 mm, HH:MM

EnclosureSS-304, Flameproof

MountingWall Mount

Rated enclosure for hazardous / explosive industrial zones.

GPS Clock

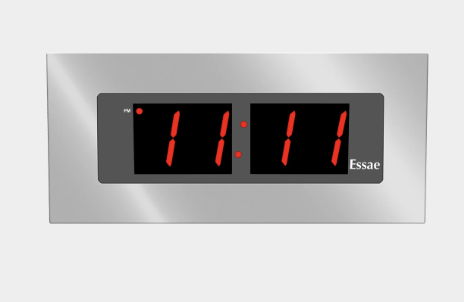

GPS Clock — GDT-57SS Flush Mount

Display Size57 mm, HH:MM

EnclosureSS-304 Stainless Steel

MountingFlush Mount

Sits flush with the wall for a clean, tamper-resistant installation.

GPS Clock

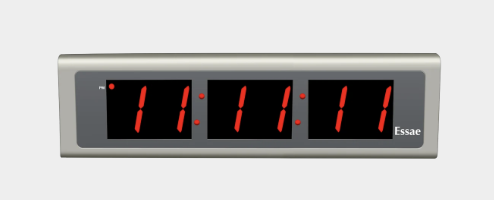

GPS Clock — GDT-57-6

Display Size57 mm, HH:MM:SS

EnclosureSS-304 Stainless Steel

MountingWall Mount

6-digit display adds live seconds readout alongside hours & minutes.

Printing & Documentation

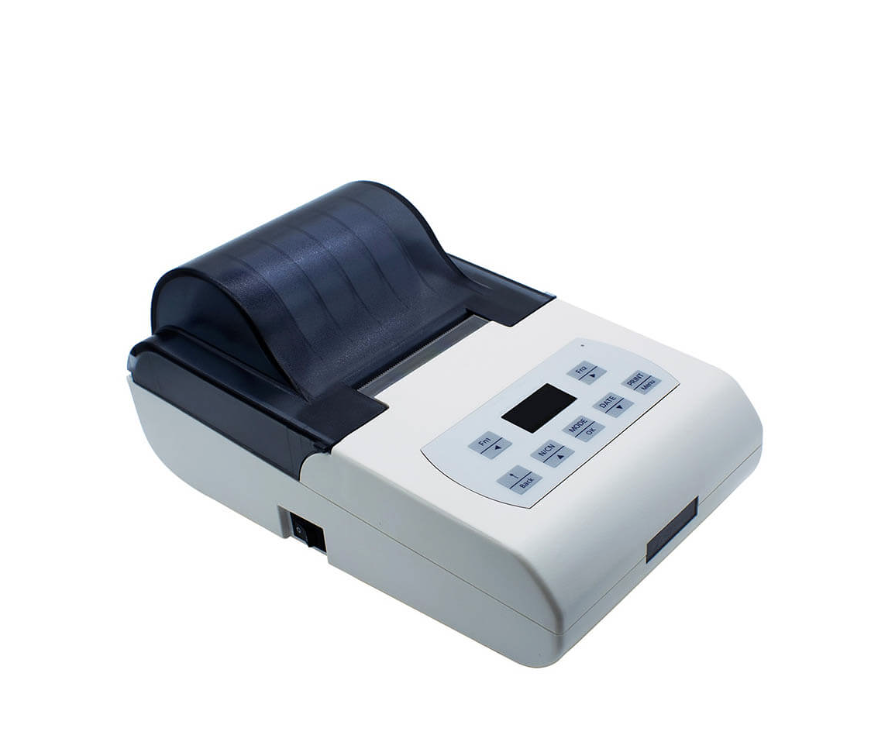

Balance Printer — MTP-110

Printing MethodImpact Dot-matrix

Printing Format24 Digits/Line

Paper Width57.5 | 50mm

InterfaceRS-232C / USB

ISO/GLP compliant, with barcode scanner support and login protection.

Printing & Documentation

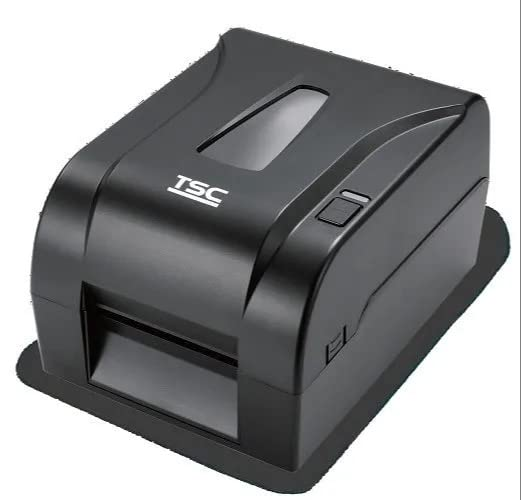

Barcode & Label Printer — TSC-220

Printing MethodDirect Thermal / Transfer

Resolution203 DPI

Print SpeedUp to 152mm/s

InterfaceUSB / RS-232 / Ethernet

Pairs directly with SVWS platform scales for print-on-weigh labelling.

Printing & Documentation

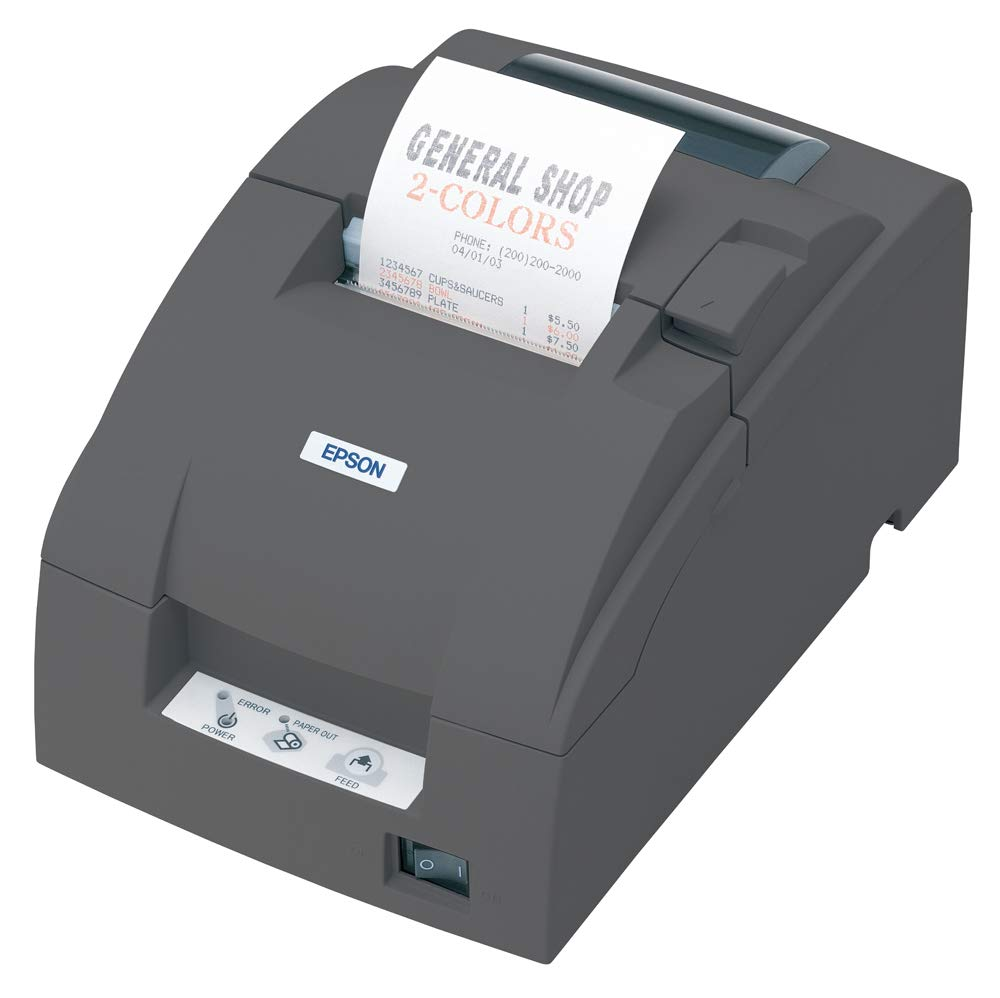

Dot-Matrix Receipt Printer — TM-U220D

Printing Method9-Pin Impact Dot-matrix

Print ColourBlack, or Black + Red

Paper Width58 / 70 / 76mm

InterfaceUSB / RS-232 Serial

Ideal for weighbridge receipts, invoices and kitchen order dockets.

Calibration

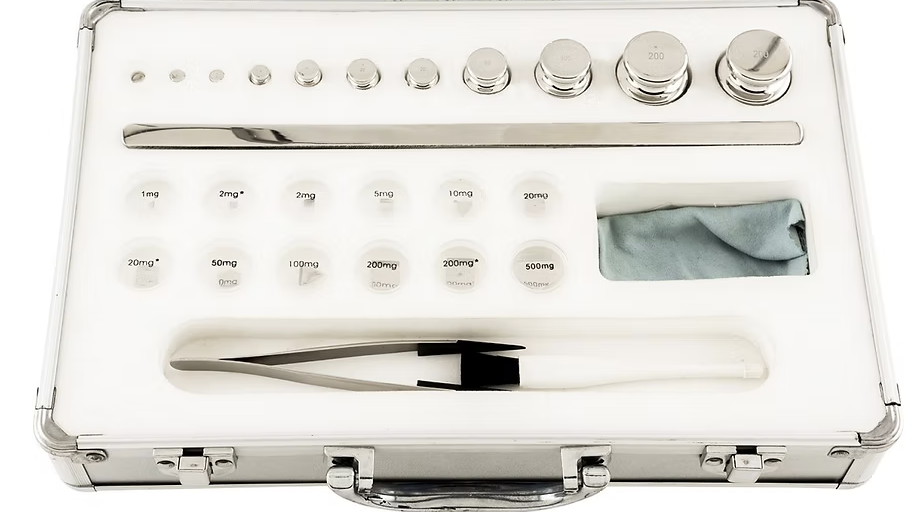

Standard Weight Box — Class E1–E2

ClassE1/E2 (1mg–200gm)

StandardNABL Traceable · R111

Material316 Stainless Steel

FinishMirror Polish

Calibration

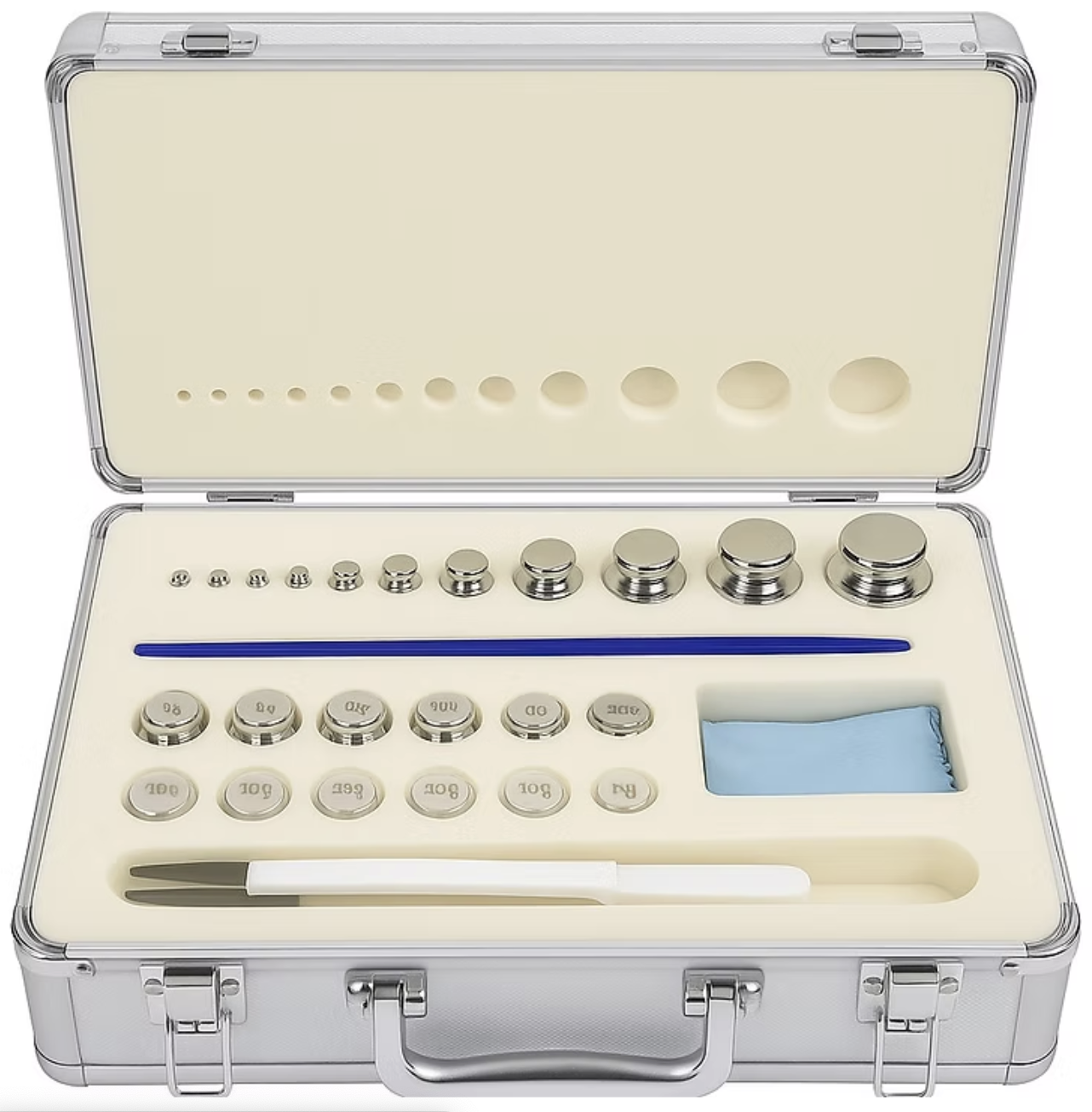

Standard Weight Box — Class F1–F2

ClassF1/F2 (1mg–200gm)

StandardNABL Traceable · R111

Material304 Stainless Steel

FinishMirror Polish

Calibration

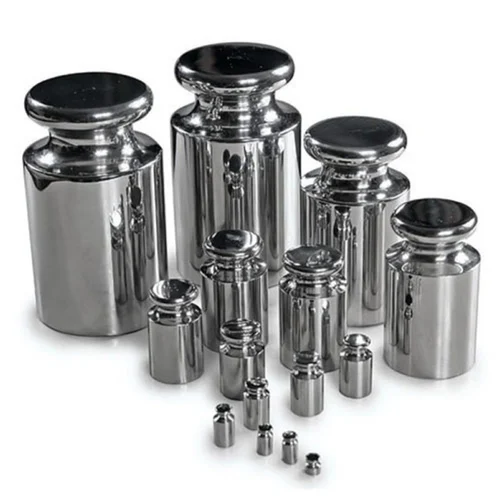

S.S. Weights — Class M1 · F1 · F2

ClassM1/F1/F2 (1gm–20kg)

StandardOIML R111 Traceable

MaterialStainless Steel, Knob Type

FinishMirror / Satin Polish

Grade chosen to match required tolerance — F1/F2 for lab checks, M1 for shop-floor use.

Calibration

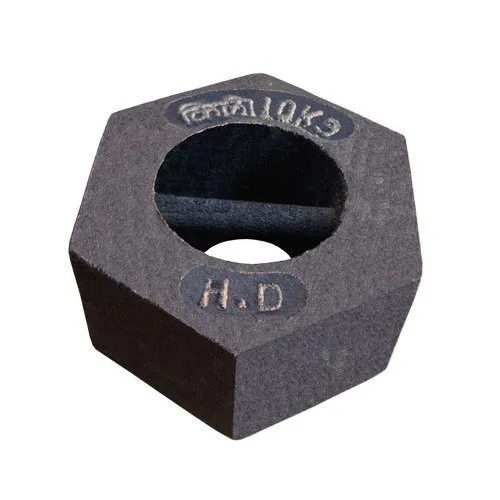

C.I. Weights — Class M1–M2

ClassM1/M2 (Commercial)

StandardLegal Metrology Approved

MaterialCast Iron

Range1kg – 50kg

Rugged hexagonal weights for platform, counter and trade scales.
